How does a plate heat exchanger work?

Hot and cold fluids flow in alternating channels formed by thin, corrugated stainless steel (or titanium) plates. The plates create high turbulence and a very large surface area in a small footprint, transferring heat across the plate wall with no mixing of the two fluids.

How do I clean a plate heat exchanger?

For gasketed units, isolate, drain and open the frame, then CIP-clean the plate pack with a mild acid (for scale) or alkaline (for biofilm) at 60 °C. Brazed plate units are flushed in-place with descaler. Pair with a side stream filtration unit upstream to extend cleaning intervals.

Why is my plate heat exchanger blocked or losing performance?

The most common causes are scale on the hot side, magnetite fouling on the heating side, or biological growth on cooling duties. Falling secondary flow or rising approach temperature are early warning signs — a CIP service or plate replacement restores performance.

What is the difference between brazed and gasketed plate heat exchangers?

Brazed plate units are compact, copper- or nickel-brazed and non-serviceable — ideal for sealed duties up to ~30 bar. Gasketed units can be opened, expanded and re-gasketed for cleaning and capacity changes — preferred for district heating, DHW and industrial process duties.

Can you size a plate heat exchanger for my project?

Yes. Send the duty (kW), hot/cold flow temperatures and fluid type to sales@ukgp.co.uk and our engineers will run a thermal selection using manufacturer software and return a quoted unit with full datasheet and GA drawing.

UKGPINDUSTRIAL

Anti rust · Anti corrosion

Request Quote

UKGP-PHE · ANTI RUST · ANTI CORROSION

Plate Heat Exchangers — Gasketed, Brazed & Welded

Name: Plate Heat Exchanger
Brand: UKGP Industrial
SKU: UKGP-PHE

Plate to plate heat exchanger units for efficient thermal transfer — gasketed plate-and-frame, brazed and welded variants with full UK spares.

Description

Gasketed and brazed plate heat exchangers selected and supplied for efficient thermal transfer between fluids. In-house thermal sizing, full UK stock holding and a complete spares & service offering.

See sizes & prices Request a quote +44 20 8935 5572

UK stock · Same-day dispatch before 3pm · Trade accounts welcome

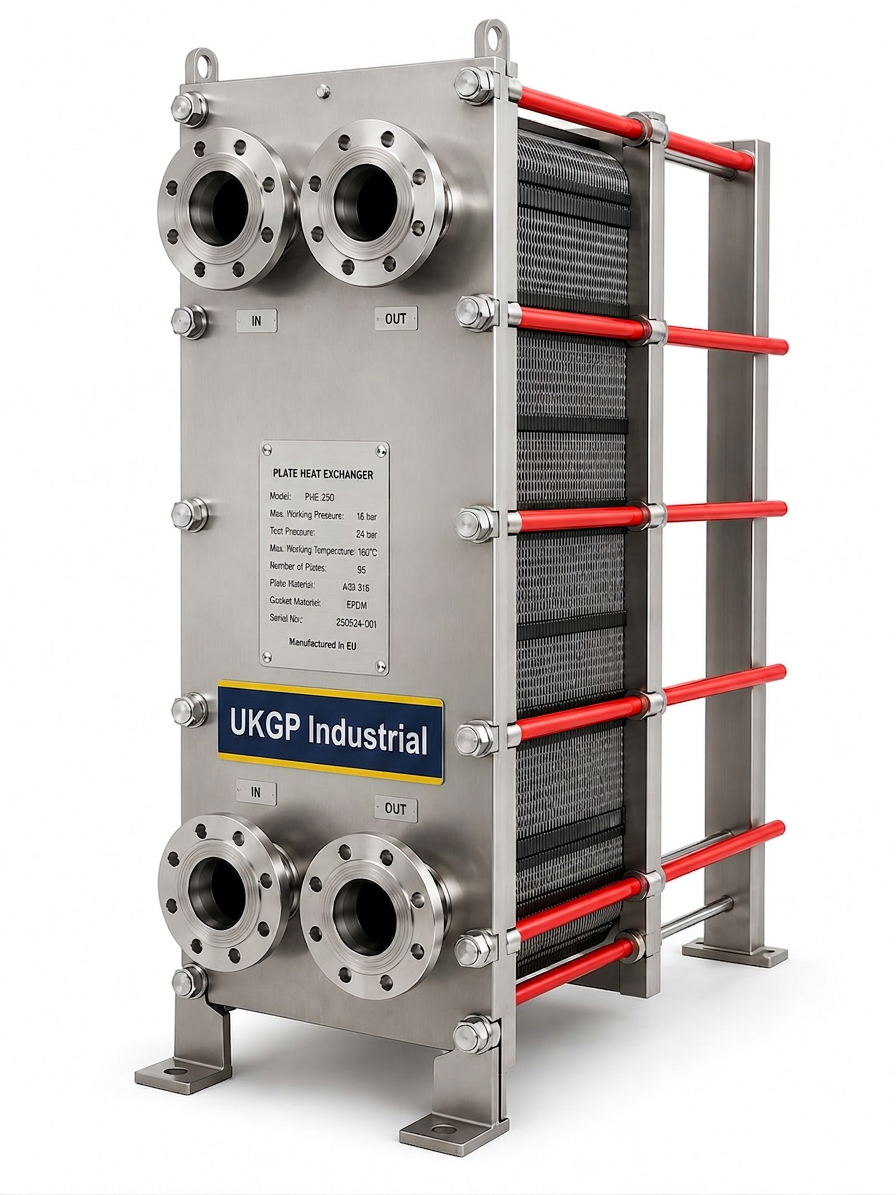

Gasketed plate-and-frame plate heat exchanger with 316L stainless plates

UKGP · Industrial

UKGP-PHE · PhexPak gasketed plate pack

Plate heat exchangers — sizes & buy

Pre-packaged gasketed plate heat exchangers from 100 kW to 1,200 kW. Select the duty below to size the plate count for either domestic hot water or central heating service.

Plate: 316L stainless
Gaskets: EPDM clip-on
Pressure: PN16 standard
Range: 100 — 1,200 kW

Domestic hot water duty. Plate count sized for instantaneous DHW production from an 80°C primary supply to 60°C secondary outlet.

Power	DHW 60°C flow	Length (A)	Height (B)	Width (C)	Depth (D)	Part code	Price
100 kW	0.48 l/s	745 mm	890 mm	250 mm	395 mm	UKGP-PHE-DHW-01	£1,450
200 kW	0.96 l/s	745 mm	890 mm	250 mm	395 mm	UKGP-PHE-DHW-02	£1,985
300 kW	1.44 l/s	745 mm	920 mm	250 mm	515 mm	UKGP-PHE-DHW-03	£2,495
400 kW	1.93 l/s	745 mm	920 mm	250 mm	515 mm	UKGP-PHE-DHW-04	£2,985
500 kW	2.41 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-05	£3,495
600 kW	2.89 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-06	£3,985
700 kW	3.37 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-07	£4,495
800 kW	3.85 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-08	£4,985
900 kW	4.33 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-09	£5,495
1000 kW	4.81 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-10	£6,450
1100 kW	5.30 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-11	£7,250
1200 kW	5.78 l/s	745 mm	960 mm	315 mm	560 mm	UKGP-PHE-DHW-12	£8,150

100 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-01

£1,450

Length: 745 mm
Height: 890 mm
Width: 250 mm
Depth: 395 mm
DHW 60°C flow: 0.48 l/s

80°C primary

200 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-02

£1,985

Length: 745 mm
Height: 890 mm
Width: 250 mm
Depth: 395 mm
DHW 60°C flow: 0.96 l/s

80°C primary

300 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-03

£2,495

Length: 745 mm
Height: 920 mm
Width: 250 mm
Depth: 515 mm
DHW 60°C flow: 1.44 l/s

80°C primary

400 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-04

£2,985

Length: 745 mm
Height: 920 mm
Width: 250 mm
Depth: 515 mm
DHW 60°C flow: 1.93 l/s

80°C primary

500 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-05

£3,495

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 2.41 l/s

80°C primary

600 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-06

£3,985

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 2.89 l/s

80°C primary

700 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-07

£4,495

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 3.37 l/s

80°C primary

800 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-08

£4,985

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 3.85 l/s

80°C primary

900 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-09

£5,495

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 4.33 l/s

80°C primary

1000 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-10

£6,450

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 4.81 l/s

80°C primary

1100 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-11

£7,250

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 5.30 l/s

80°C primary

1200 kW gasketed plate heat exchanger — DHW 60°C

UKGP-PHE-DHW-12

£8,150

Length: 745 mm
Height: 960 mm
Width: 315 mm
Depth: 560 mm
DHW 60°C flow: 5.78 l/s

80°C primary

Prices ex VAT. Options on request: primary hi-limit safety shut-off valve, secondary circulating / transfer pump, insulation jacket. CAD files for all models on request — call +44 20 8935 5572.
