What does an air and dirt separator do?

It removes microbubbles of dissolved air and ferrous/non-ferrous particulate from a closed heating or chilled water system. The coalescing media inside captures micro-bubbles that float to the auto-vent, while particles drop into the dirt chamber for periodic flushing.

Where should an air and dirt separator be installed?

Install at the point of lowest pressure and highest temperature — typically on the flow side, immediately downstream of the boiler or chiller. Vertical installation is preferred for full coalescing efficiency.

Do I need a magnetic air and dirt separator?

If your system contains cast-iron heat exchangers, steel pipework or has shown signs of magnetite (black sludge), specify the magnetic variant. The neodymium magnet captures iron oxide before it reaches pumps, control valves and heat exchanger plates.

How often should an air and dirt separator be serviced?

Flush the dirt chamber quarterly for the first year, then biannually once the system is clean. Check the auto-vent annually and inspect the coalescing media at major shutdowns. Pair with a side stream filtration unit for continuous magnetite removal.

UKGPINDUSTRIAL

Anti rust · Anti corrosion

Request Quote

UKGP-ADS · ANTI RUST · ANTI CORROSION

Air & Dirt Separators for Heating and Chilled Water Systems

Name: Air & Dirt Separators
Brand: UKGP Industrial
SKU: UKGP-ADS

High-efficiency air and dirt separator units — coalescing deaeration plus sludge removal in a single vessel.

Description

Combined air and dirt separators with high-efficiency coalescing media remove microbubbles and particulate from closed heating and chilled water circuits — extending equipment life and protecting downstream plant.

See sizes & prices Request a quote +44 20 8935 5572

UK stock · Same-day dispatch before 3pm · Trade accounts welcome

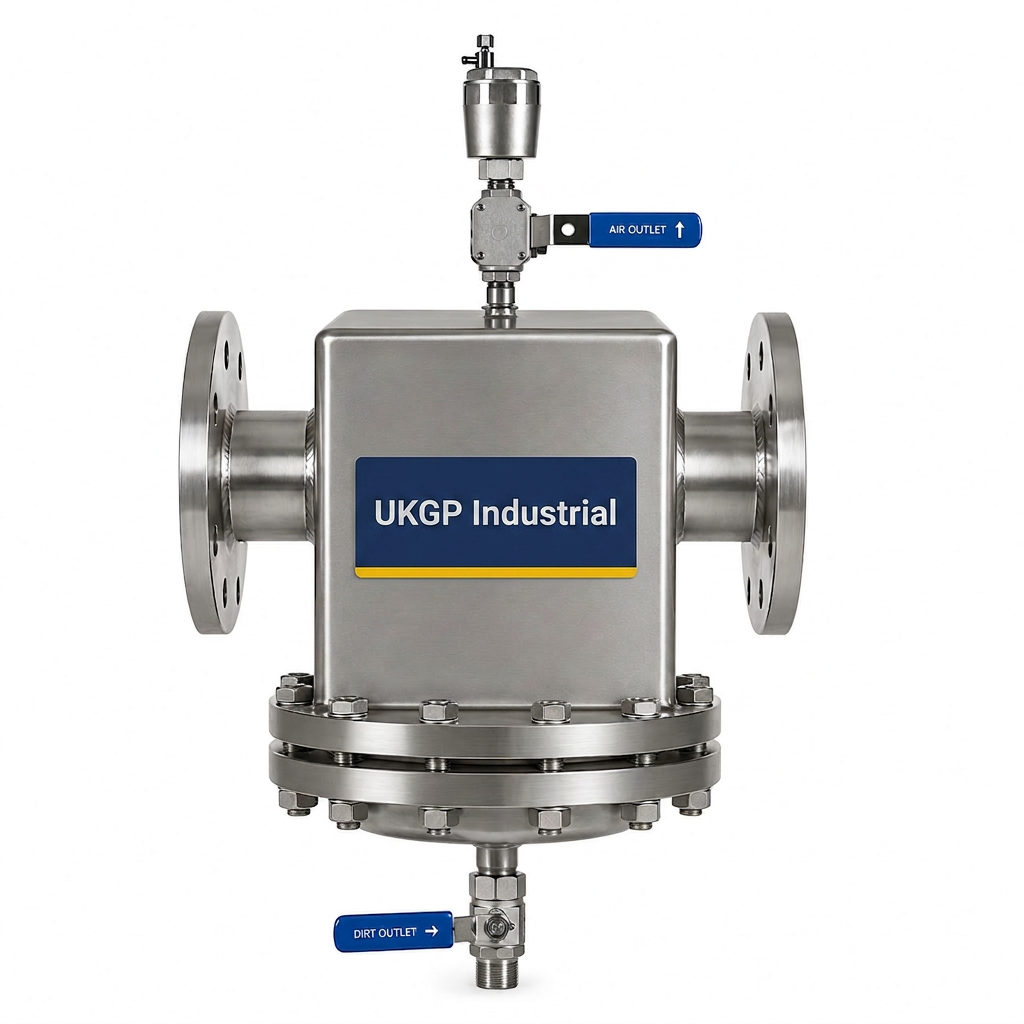

Combined air and dirt separator with coalescing media and magnetic insert

UKGP · Industrial

UKGP-ADS · Bespoke specification

Sizes, dimensions & buy options

Carbon steel body, flanged PN16 (except DN32 & DN40), with stainless steel air-bubble coalescing brush, Flamco Flexvent AAV and DN25 drain valve. Rated 10 barg @ 110°C. Not suitable for drinking water.

Body: Carbon steel
Internals: Stainless steel
Rating: 10 barg @ 110°C
Drain: DN25 valve

Size	Length	Body	Height	Connection	Part code	Price
DN32 — 1¼"	300 mm	DN100	665 mm	BSPT male	UKGP-ADS-01	£285
DN40 — 1½"	300 mm	DN100	665 mm	BSPT male	UKGP-ADS-02	£305
DN50 — 2"	350 mm	DN150	705 mm	Flanged PN16	UKGP-ADS-03	£420
DN65 — 2½"	350 mm	DN150	705 mm	Flanged PN16	UKGP-ADS-04	£465
DN80 — 3"	460 mm	DN200	855 mm	Flanged PN16	UKGP-ADS-05	£590
DN100 — 4"	460 mm	DN200	855 mm	Flanged PN16	UKGP-ADS-06	£720
DN125 — 5"	630 mm	DN250	1125 mm	Flanged PN16	UKGP-ADS-07	£1,145
DN150 — 6"	630 mm	DN300	1125 mm	Flanged PN16	UKGP-ADS-08	£1,390

DN32 — 1¼" air and dirt separator

UKGP-ADS-01

£285

Length: 300 mm
Body: DN100
Height: 665 mm

BSPT male

DN40 — 1½" air and dirt separator

UKGP-ADS-02

£305

Length: 300 mm
Body: DN100
Height: 665 mm

BSPT male

DN50 — 2" air and dirt separator

UKGP-ADS-03

£420

Length: 350 mm
Body: DN150
Height: 705 mm

Flanged PN16

DN65 — 2½" air and dirt separator

UKGP-ADS-04

£465

Length: 350 mm
Body: DN150
Height: 705 mm

Flanged PN16

DN80 — 3" air and dirt separator

UKGP-ADS-05

£590

Length: 460 mm
Body: DN200
Height: 855 mm

Flanged PN16

DN100 — 4" air and dirt separator

UKGP-ADS-06

£720

Length: 460 mm
Body: DN200
Height: 855 mm

Flanged PN16

DN125 — 5" air and dirt separator

UKGP-ADS-07

£1,145

Length: 630 mm
Body: DN250
Height: 1125 mm

Flanged PN16

DN150 — 6" air and dirt separator

UKGP-ADS-08

£1,390

Length: 630 mm
Body: DN300
Height: 1125 mm

Flanged PN16

Prices ex VAT. Bespoke sizes, higher pressure ratings (PN25 / PN40) and stainless steel bodies available on request. Lead times from UK stock — call +44 20 8935 5572.
